F210 Compact Common Rail Injector Tester (Piezo & Solenoid) – Precision USB Digital Pulse Driver Simulator

Product Overview & Professional Diagnostic Scope

The F210 Common Rail Injector Tester (also engineered under the FixDiesel FD210 series) by BEACON MACHINE is a next-generation, palm-sized electronic diagnostic tool designed for diesel fuel injection specialists and automotive workshops. Combining an intuitive color LCD display, tactile rotary encoders, and a high-speed USB computer communication interface, the F210 allows technicians to simulate real-world engine Electronic Control Unit (ECU) driving signals on either a workbench or alongside manual nozzle pop testers (such as S60H / EPS100).

Engineered with dual-mode driving circuitry, the F210 effortlessly powers both traditional electromagnetic solenoid injectors and advanced piezoelectric crystal injectors. Technicians can execute real-time parameter tuning across injection pulse frequency (1–30Hz), pulse width duration (100–3000μs), and operating modes to evaluate fuel delivery, atomization quality, valve response time, and seat tightness under varied simulated driving conditions.

The F210 supports all major international diesel injection brands: Bosch (CRI 1.0, 2.0, 2.2, CRIN 1, 2, 3, 4, and Piezo 0445115/116/117 series; Part numbers: 0445110376, 0445120236, 0445120123), Delphi (Euro 3, 4, 5, 6, DFI 1.5; Part numbers: 28231014, 28229873), Denso (G2, G3, G4, and Piezo; Part numbers: 095000-5050, 095000-6353, 295050-0180), and Siemens / Continental VDO (A2C59517051, BK2Q-9K546-AG). It is widely deployed for troubleshooting light commercial vehicles, passenger cars, and heavy-duty trucks: Ford Transit 2.2 / 2.4 TDCi, Toyota Hilux / Prado 1KD-FTV / 2KD-FTV D-4D, Volkswagen / Audi 2.0 / 3.0 TDI (CR), Mercedes-Benz CDI (OM642, OM651), Cummins ISF 2.8 / 3.8, and Isuzu D-Max 4JJ1. The F210 rapidly diagnoses and resolves critical engine faults: engine knocking, cylinder misfires (shaking), unburnt fuel smoke (black/grey haze), delayed throttle response, internal valve leakage (excessive backleak), and ECU limp-home modes caused by coil short-circuits or seized injector needles.

Technical & Service Advantages of BEACON MACHINE F210

• ✔            Dual Solenoid and Piezo Drive Functionality:            Equipped with internal intelligent high-voltage step-up circuitry (up to DC 150V) specifically tuned for Siemens VDO and Bosch Piezo crystal stacks, alongside robust PWM current regulation for electromagnetic solenoid injectors, all housed in a single portable unit.

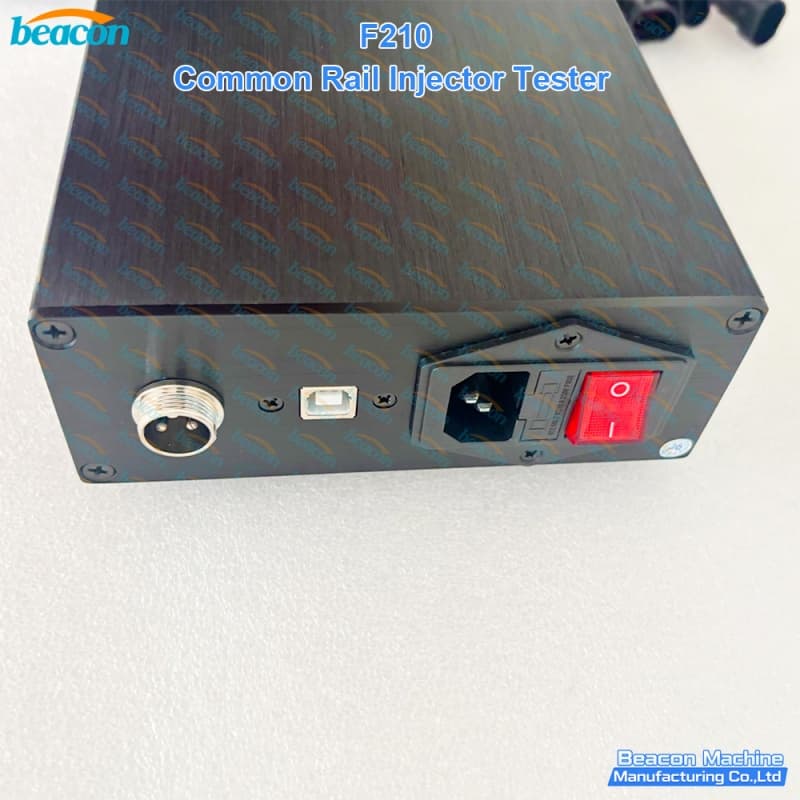

• ✔            USB PC Software Integration & Digital Customization:            Features a dedicated rear USB communication port. Technicians can connect the F210 to a laptop or desktop computer to view live waveforms, upload custom test plans, and calibrate injection duration and pulse curves through specialized diagnostic software.

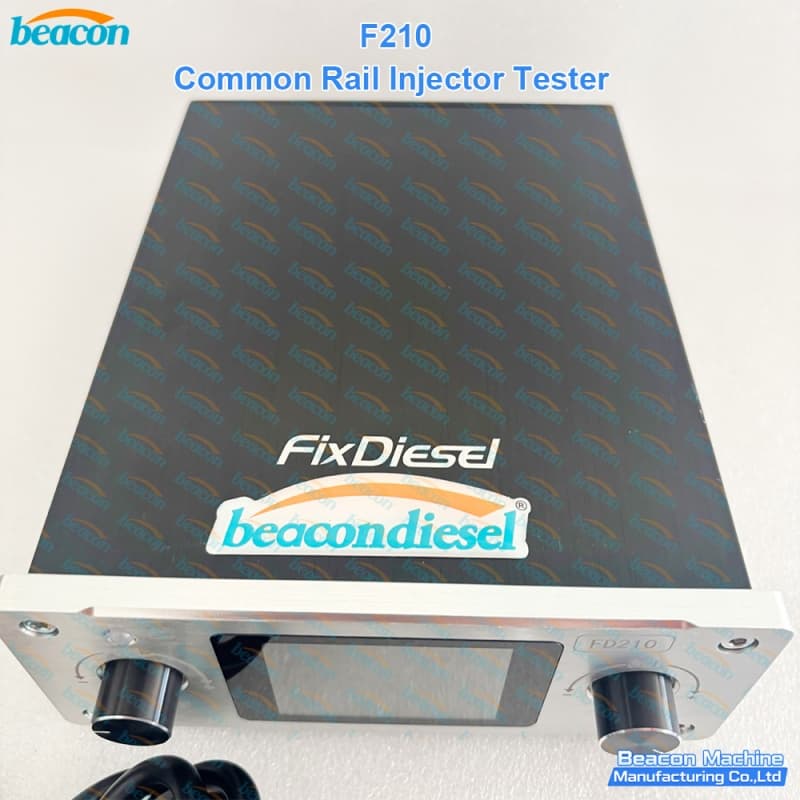

• ✔            Intuitive Dual-Encoder Hardware Control:            Two high-precision digital rotary knobs with push-to-confirm functionality enable immediate on-the-fly adjustment of pulse width and frequency directly on the bright color display, allowing fast, one-handed operation without taking off workshop gloves.

• ✔            Rugged Aluminum Alloy Shielded Enclosure:            Built in a heavy-duty extruded aluminum body that provides excellent electromagnetic shielding (anti-EMI), rapid heat dissipation, and superior physical drop resistance, ensuring reliable daily performance in demanding garage environments.

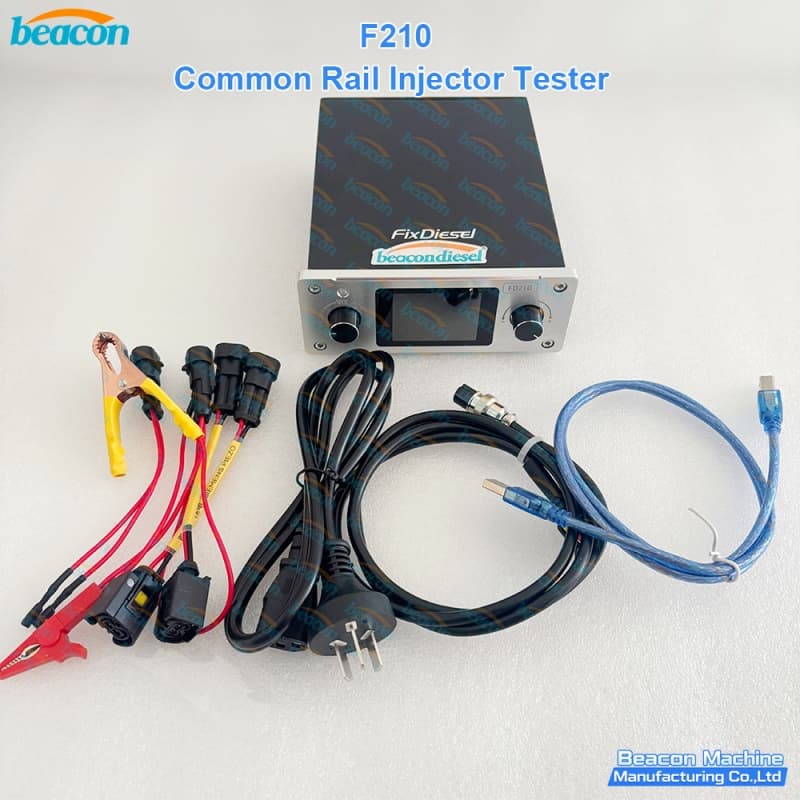

• ✔            Official BEACON MACHINE Factory Warranty & Global Support:            Includes a comprehensive 12-month manufacturer warranty, a complete set of vehicle-grade harness adapters (Bosch, Delphi, Denso, Piezo), USB data cable, English technical manual, and fast-response customer technical support.
